Sensors and Mission systems

The sensor and mission systems can be individually installed according to your requirements at our location in Oberpfaffenhofen.


Custom installation of sensors and equipment

The Do228 NXT has proven itself to be the ideal platform for integrating various sensor systems and mission equipment. This enables it to fulfill a wide range of mission requirements. Our decades of experience guarantee the best selection and integration of mission systems. Numerous sensor systems and mission equipment have been successfully implemented. Whether radar systems, optical systems or communication systems — the possibilities are virtually endless.

The retractable wheels of the Do228 NXT enable the integration and use of a 360° radar system. In addition, the Do228 NXT has four hardpoints under the wings for the attachment of equipment.


Side Looking Airborne Radar (SLAR)


Search/Surveillance Radar, for example Leonardo Seaspray 5000E, Telephonics RDR-1700B


SAR Direction Finder (SAR/DF), for example RhoTheta RT-600


Automatic Identification System (AIS)


Electro Optical/Infrared (EO/IR) Sensor, for Example Wescam MX-15


Visible (VIS) Line Scanner


Ultraviolet/Infrared (UV/IR) Scanner


Microwave Radiometer (MWR)


Mission Management System, for example Hensoldt EuroNav7, Aerodata Optimare Medusa


Operators Console – Forward Looking Design


V/UHF Communication, for example Rockwell Collins Talon, Rohde&Schwarz MR6000R


Tactical Data Link: Line of Sight

Advantages

check.svg

Wide variety of missions due to individual installation of sensors and equipment

check.svg

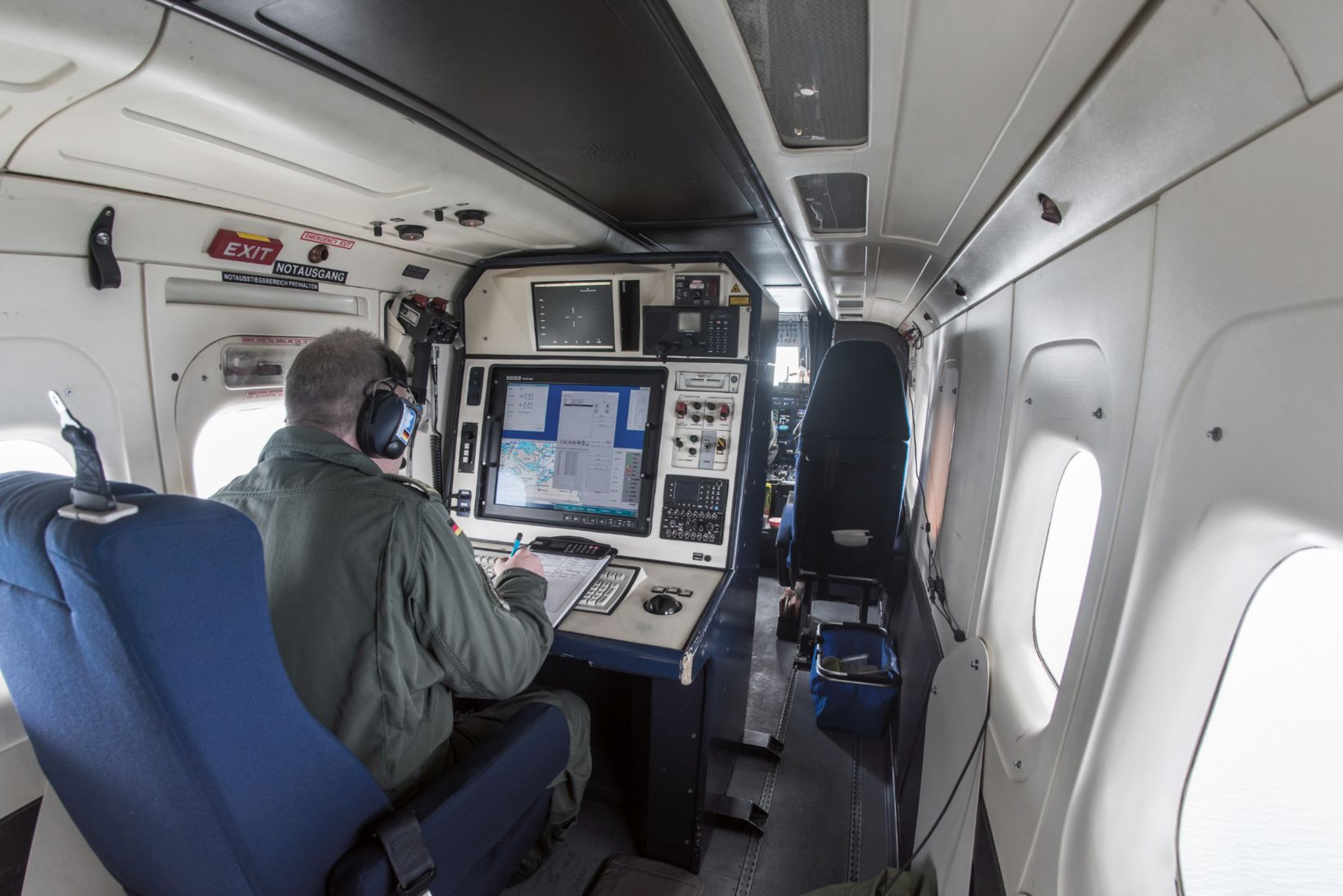

Optimized cabin space allows for installation of operator consoles

check.svg

Four hardpoints under the wings provide additional equipment flexibility

check.svg

Modification and upgrading possible at the General Atomics AeroTec Systems service center
